The Standard Comms Board and Advanced Comms Board carbon fiber housings — sections 2 and 3 below — are no longer offered. Carbon fiber packaging for Magpie is still available. For anything else on this page, contact info@quspin.com.
Overview
A carbon fiber case for the sensor is available as an optional add-on for applications that require extra protection and robustness. The CF packaging option is offered for:
- QTFM Gen-2 sensor head and Electronics Controller (ECU)
- Standard Comms Board (SCB) — no longer offered
- Advanced Comms Board (ACB) — no longer offered
- Ethernet adapter for extended cable lengths (currently under development)
- Five-hour custom battery pack (currently under development)
Technical Specifications

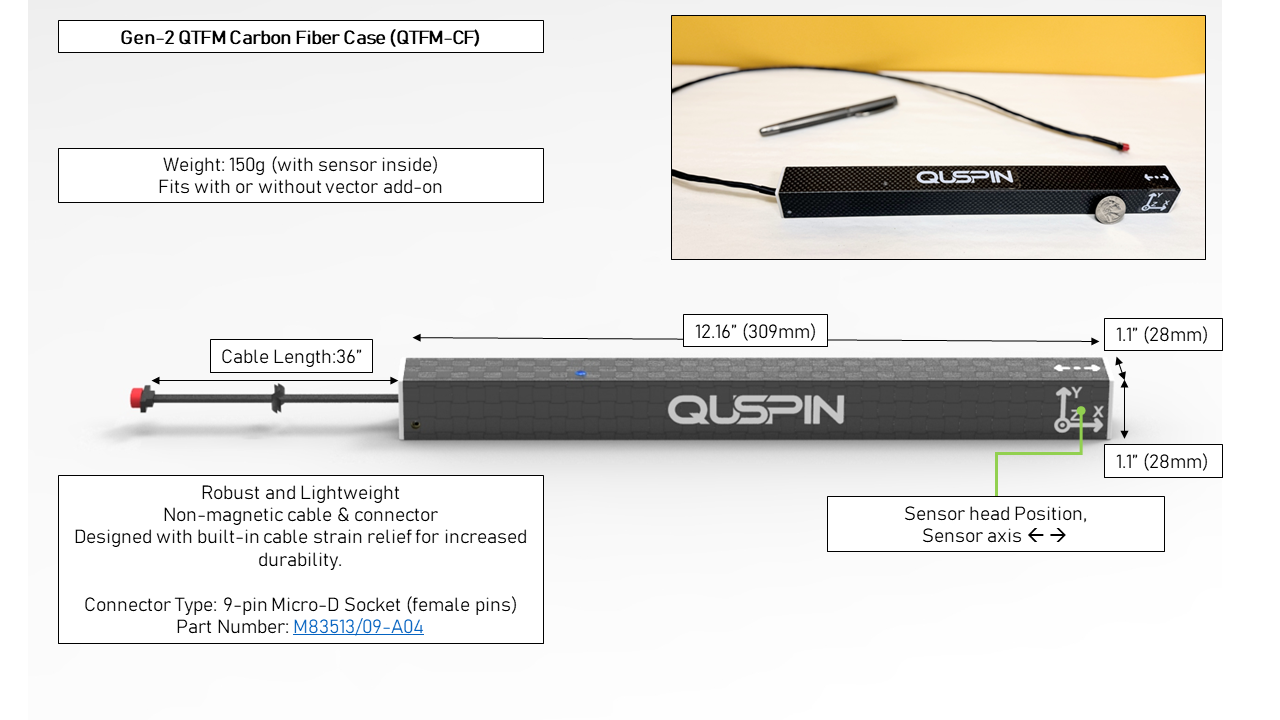

1. Sensor CF Housing (QTFM-CF)
Price: +$1.5k
This QTFM-CF casing accommodates the QTFM Gen-2 sensor head, electronics, and extension cable mounted on a sled for easy insertion or removal from the case. The LED on the ECU is visible from outside the CF casing.

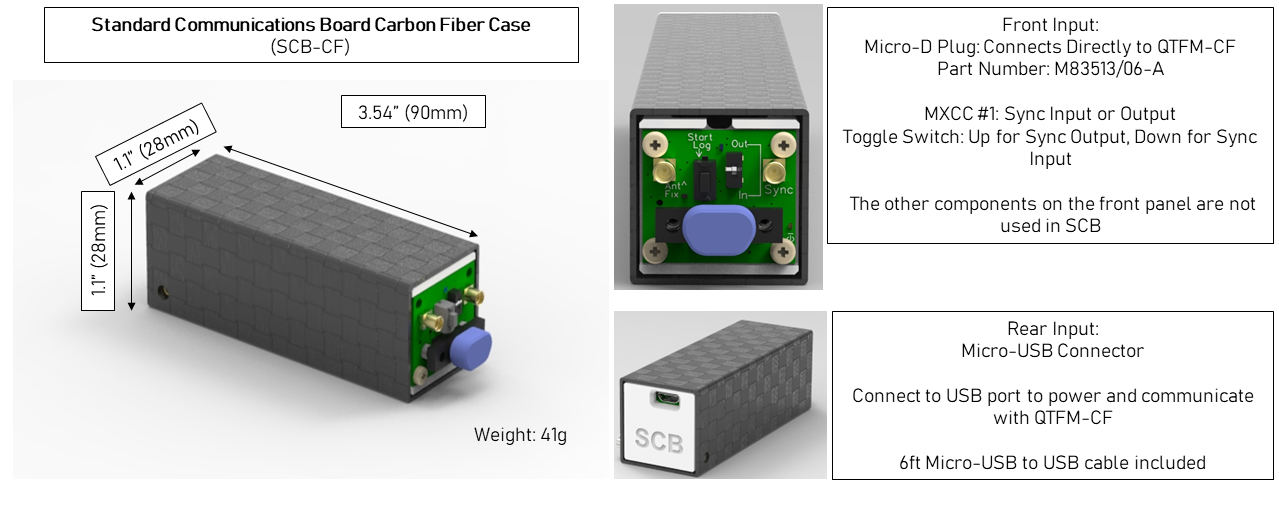

2. Standard Comms Board CF Housing (SCB-CF)
No longer offered. Retained for reference.
Price: Included with QTFM-CF

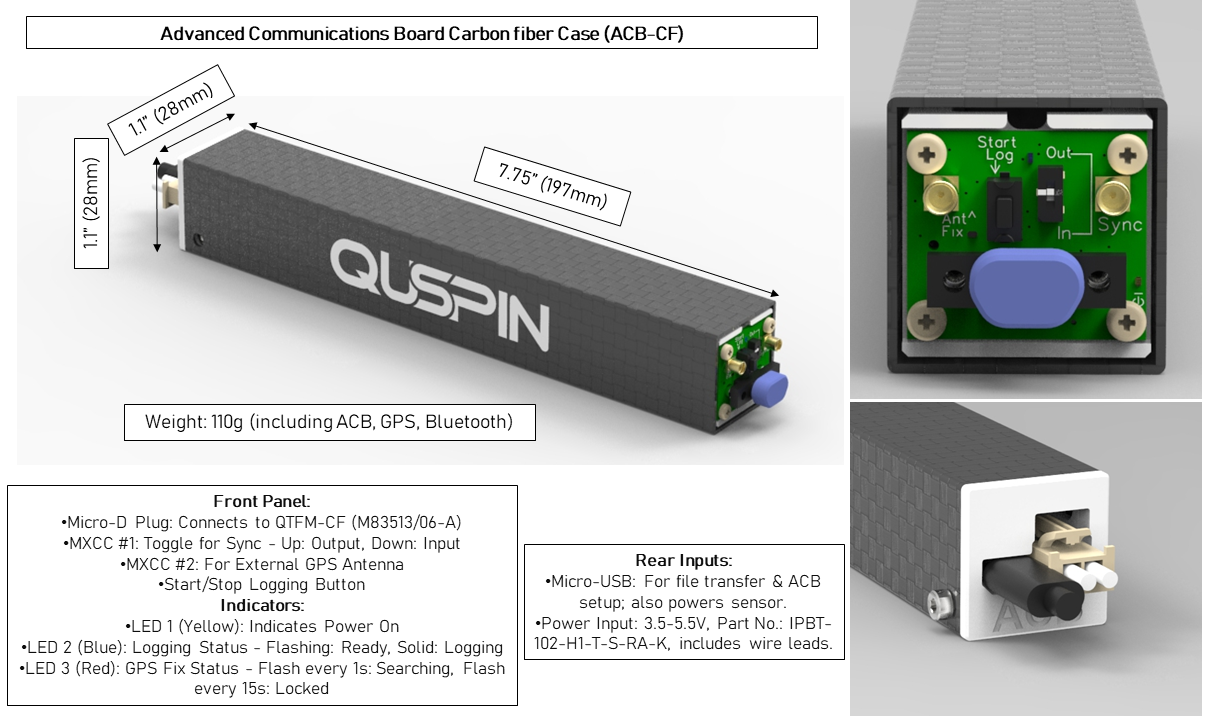

3. Advanced Comms Board (ACB-CF)
No longer offered. Retained for reference.
Price: +$500 [also needs QTFM-CF]
