Downloads

QTFM Gen-2 CAD

3D models and the mechanical drawing for integrating QTFM Gen-2 into your platform.

CAD file downloads (.stl)

Sensor head .stl · 10/10/2024 Sensor head with vector coil attachment .stl · 10/10/2024 Electronics Control Unit (ECU) .stl · 10/10/2024

Mechanical drawing

01_Mockup_LCM Drawing_7-2-24 (3) Dimensioned drawing · PDF

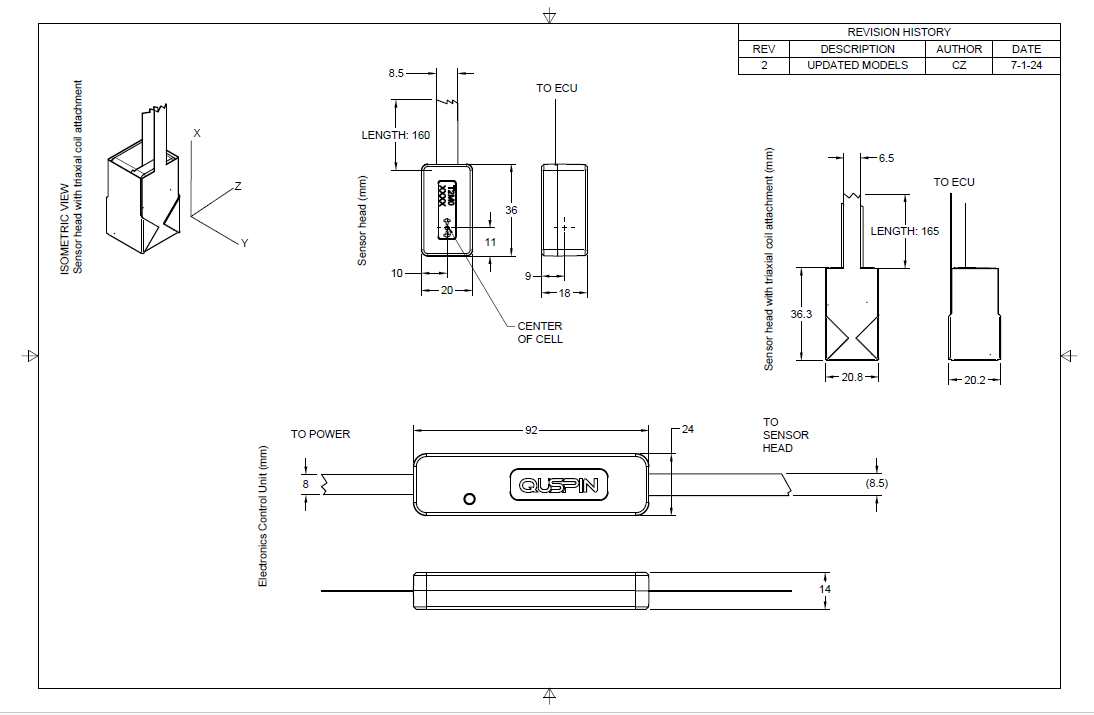

Dimensioned mechanical drawing of the QTFM Gen-2 sensor head and electronics control unit

Need help? info@quspin.com
