QZFM Dimensions

Mechanical drawings and downloadable 3D models for each generation of the QZFM sensor head.

Neuro-1.0 QZFM dimensions

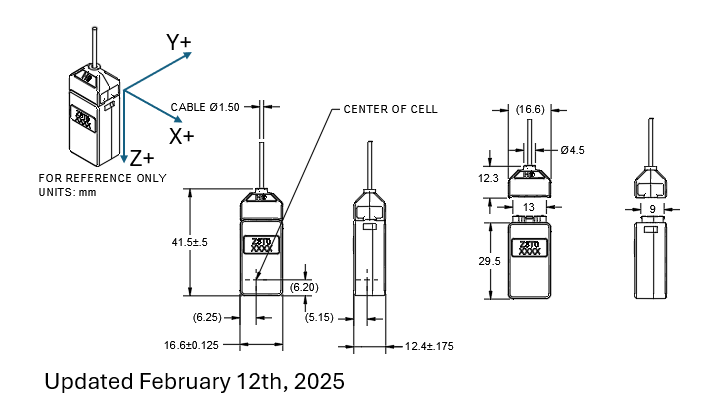

Dimensioned drawing of the Neuro-1.0 QZFM sensor head

Gen-3.0 QZFM dimensions

Download the 3D file →

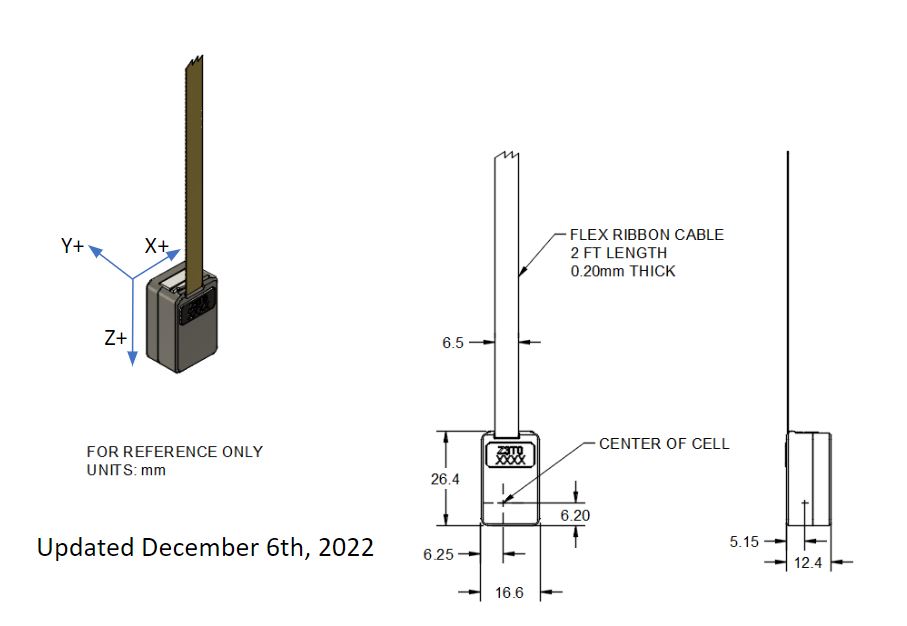

Dimensioned drawing of the Gen-3.0 QZFM sensor head

Gen-2.0 QZFM dimensions

Download the 3D file →

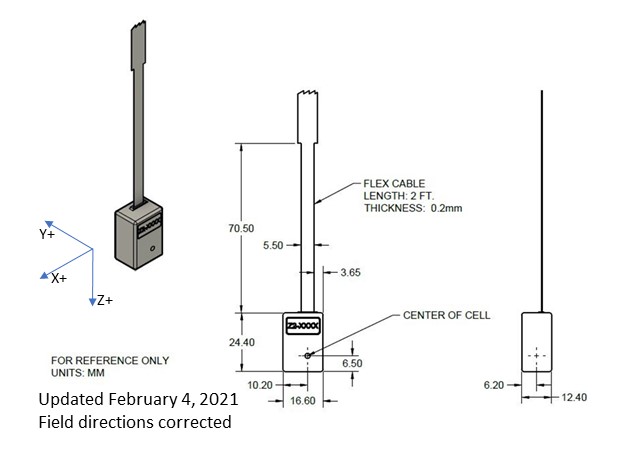

Dimensioned drawing of the Gen-2.0 QZFM sensor head

Gen-1.5 QZFM dimensions

Download the 3D file →

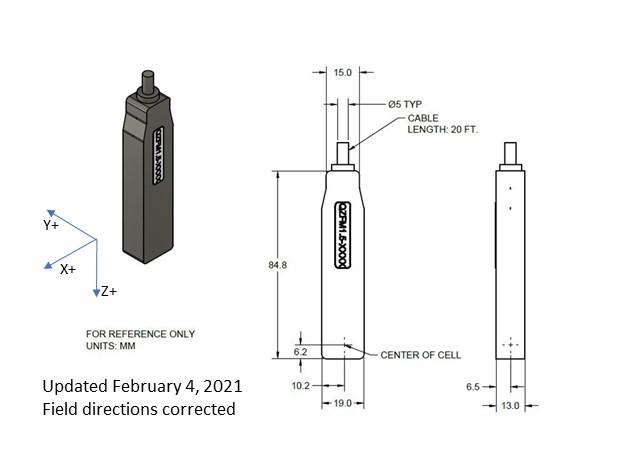

Dimensioned drawing of the Gen-1.5 QZFM sensor head

Gen-1.0 QZFM dimensions

Download the 3D file →

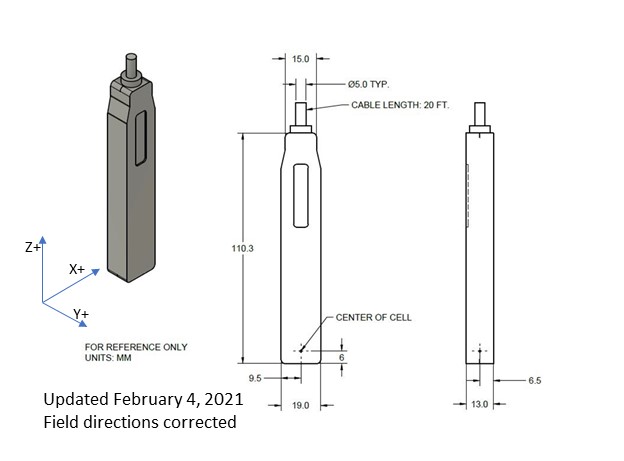

Dimensioned drawing of the Gen-1.0 QZFM sensor head
3D models are shared as downloadable files on Google Drive. Need a format we don’t list here? Get in touch.
